Braiding machine for finest wire KB 1/12-56
- Suitable for finest braids up to 1 mm.
- Incl. cylindrical take-off disc Ø 40 mm, take-up on drum 40 x 27 mm,
- Braiding die up to 2 mm and carrier protection,
- PLC
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Round braiding machine
RU 2/12-80
- Suitable for braids up to 5 mm.
- Incl. cylindrical take-off disc Ø 95,5 mm, take-up on drum 300 x 100 mm,
- Braiding die up to 5 mm, meter counter, carrier protection,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!

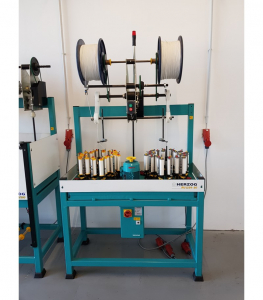

Circular braiding machine
RU 2/24-80
- Suitable for hollow braids
- Incl. cylindrical take-off disc Ø 95 mm, take-up on 373 x 149 mm drums
- Braiding die up to 6 mm and EC- carrier protection,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Square braiding machine
QU 2/8-100
- Suitable for braids up to 4 mm.
- Incl. cylindrical take-off disc Ø 95,5 mm, take-up on drum 300 x 100 mm,
- Braiding die up to 6 mm and carrier protection,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Braiding machine for fine wire KB 1/24-100
- Suitable for braids up to 6 mm.
- Incl. conical take-off disc Ø 500 mm, take-up and pay-off drum 500 x 404 mm,
- Braiding die up to 6 mm, core control, central lubrication and cabin,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!

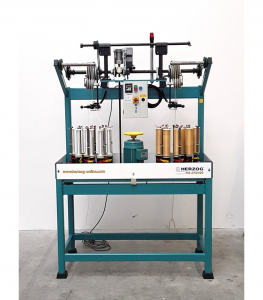

Round braiding machine
NG 2/16-120
- Suitable for braids up to 8 mm.
- Incl. cylindrical take-off disc Ø 95,5 mm, auxilary take-off
- Take-up on drums 370 x 200 mm, core control
- Braiding die up to 12 mm and EC carrier protection,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Rope Braiding Machine
SENG 1/32-140
+ Take-up AW 800
- Suitable for braids up to 25 mm (18 mm with AW 800)
- Incl. cylindrical take-off disc Ø 500 mm and auxiliary take-off
- Braiding die and carrier protection
- Core yarn feeding for mountaineering ropes
- Meter counter
- Electric connection: 400 Volts, 3 phases + N;
- Take-up for drums up to Ø 800 x 550 mm
Subject to prior sales!

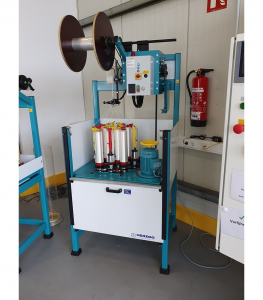

Rope braiding machine
SENG 1/12-160
- Suitable for braids up to 25 mm.
- Incl. cylindrical take-off disc Ø 313 mm, core control, auxilary take-off disc
- Braiding die up to 25 mm and carrier protection
- Meter counter
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!

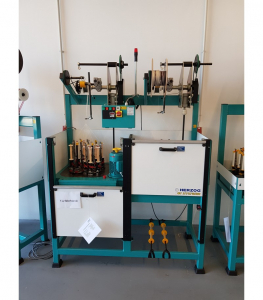

Square braiding machine
QU 2/1/12/16-200
- Suitable for square braids with 12 and 16 carriers
- Incl. cylindrical take-off disc Ø 95,5 mm, take-up on 300 x 100 mm drums
- Braiding die up to 6 mm and carrier protection,
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Square braiding machine
QSE 1/12-266
- Suitable for ropes with 8 or 12 carriers up to 32 mm
- Incl. cylindrical take-off disc Ø 700 mm, auxiliary take-off
- Braiding die up to 32 mm and carrier protection
- PLC control
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Mussel rope braiding machine
SE 1/24-266
- Suitable for mussel rope production
- Incl. cylindrical take-off disc Ø 700 mm, auxiliary take-off
- Core feeding, loop device and carrier protection
- PLC
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
TAKE-UP STATION
AW 1200
- Suitable for ropes up to 40 mm
- Maximum drum diameter 1200 mm
- Maximum traverse 700 mm
- Electric connection to braiding machine
Subject to prior sales!

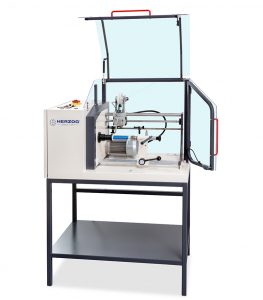

Winding machine
SP 280 E
- Suitable for textile yarns
- Maximum bobbin diameter 120 mm
- Winding traverse between 30 – 280 mm
- Traversing between 0,4 – 4 mm
- Machine speed between 800 – 3000 rpm
- Motor 1,1 KW
- UHING gear
- Integrated electrical cabinet
- Electric connection: 230 Volts, 1 phase + N;
Subject to prior sales!

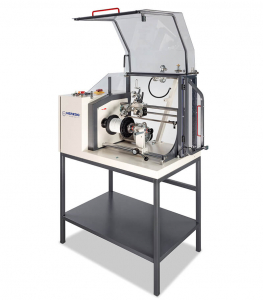

Wire winding machine
SP 300
- Suitable for wires and heavy yarns
- Self-traversing bobbins
- Maximum bobbin diameter 120 mm
- Winding traverse between 30 – 300
- Motor 4 KW
- Integrated electrical cabinet, PLC
- Electric connection: 400 Volts, 3 phases + N;
Subject to prior sales!
Caterpillar
BA 750-220
- Suitable for braids between 10 to 200 mm
- Maximum pulling force 7.500 N
- Belt length 880 mm, belt width 120 mm
- Center line 900 mm
- Force-controlled take-off
- Pneumatically controlled contact pressure, continiously adjustable
- Line speed between 0,1 to 4 m/min with connection to braiding machine
- Integrated electrical cabinet
Subject to prior sales!
